IDoc to File (Asynchronous) Part 1

Step: Create the inbound FileMat Interface Objects

Data Type

1. Navigate to your namespace under your SWCV and expand the “Interface

Objects” element

2. Right Click on “Data Types ” and “New”

3. Enter “FileMat_DT” as the name and “Create”

Note the namespace and SWCV are automatically associated given the

creation of the data type was initiated underneath them specifically. This

will hold true for the majority of objects created not only in the

Repository but also in the Directory to follow

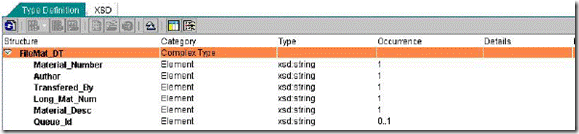

4. Configure the Data Type as shown below:

9

Note to alter the Occurrence for Queue_Id by double clicking cell and

assigning a minimum occurs (minOccurs) of “0” to make this field

optional

5. Once done “Save”

Message Type

1. Navigate to your namespace under your SWCV and expand the “Interface

Objects” element

2. Right Click on “Message Types ” and “New”

3. Enter “FileMat_MT” as the name and “Create”

4. In the “Data Type Used” section, associate the “FileMat_DT” either via drop

down, copy/insert, or drag and drop from the Data Types section on the left frame

and “Save”

Be sure the namespace of the data type is populated correctly before

saving. This is accomplished by dragging the data type to the hand

symbol to the right of the input field. If done correctly the actual data

type defined above will appear in the lower window

Message Interface

1. Navigate to your namespace under your SWCV and expand the “Interface

Objects” element

2. Right Click on “Message Interfaces” and “New”

3. Enter “FileMatIn_MI” as the name and “Create”

10

4. Configure the Message Interface as shown below and “Save”

Step: Create the MATMAS to FileMat Mapping Objects

Message Mapping

1. Navigate to your namespace under your SWCV and expand the “Mapping

Objects” element

2. Right Click on “Message Mapping ” and “New”

3. Enter “MATMAS2FileMat_MM” as the name and “Create”

4. Select the Source Message type “MATMAS.MATMAS04” either via drop down

(be sure to choose your own SWC) or drag and drop from the Imported Objects ->

Idocs section on the left frame

5. Select the Target Message type “FileMat_MT” either via drop down or drag and

drop from the Interface Objects -> Message Types section on the left frame

6. With the Source and Target message defined we can now specify the mapping

between them. To maximize your working area ‘undock’ the window by clicking

on the thumb tack in the upper right corner of the window

7. Configure the mapping as indicated in the table below. In this simple example, the

target fields are either populated by fields from the source message (Source Field

column) or from Constant functions (Constant Value column).

a. Source fields mapped to target fields can be done either by dragging the

source to the target field. Alternatively, both the source and target field

can be double clicked (both are now shown in the Data Flow Editor

window) and then ‘linked’ by left clicking the outbound parameter box of

the source, holding and dragging the arrow to the target inbound parameter

box. An arrow will now link the source and target field and both are green

to indicate a valid mapping.

b. Constant functions can be added by selecting the “Constants” function

group from the “Functions” window in the lower left corner. Left click on

the “Constant” function to add it to the Data Flow Editor window along

with the target field(s). Double click the function to enter the constant

value, then ‘link’ the fields as described above.

11

Constant Source Field Constant Target Field E1MARAM -> MATNR Material_Number E1MARAM -> ERNAM   Author E1MARAM -> E1MARA1 -> MATNR_EXTERNAL   Long_Mat_Num E1MARAM -> E1MAKTM -> MAKTX   Material_Desc

<your last name> Transfered_By

Queue_Id

8. All target fields except Queue_Id should have a green circle next to them

indicating a successful map

9. “Save” when complete

Leave the Queue_Id field empty for now, it will not be used in this exercise

Message Mapping – Testing

1. Select the “Test” tab

2. Expand the Source Tree

3. Populate values into the source message fields to be passed to the target message

as defined in the message mapping (use the following picture as a guide)

4. Click the wrench icon to execute the test

5. Validate the results in the Result window match to the expected results from the

message mapping

12

Remember that source data can also be loaded from xml files or in a

browser window as well and that test cases can be saved for later re-

execution

Interface Mapping

1. Navigate to your namespace under your SWCV and expand the “Mapping

Objects” element

2. Right Click on “Interface Mapping ” and “New”

3. Enter “MATMAS2FileMat_IM” as the name and “Create”

4. Select the Source Message interface “MATMAS.MATMAS04” either via drop

down (be sure to choose your own SWC) or drag and drop from the Imported

Objects -> Idocs section on the left frame

5. Select the Target Message interface “FileMatIn_MI” either via drop down or drag

and drop from the Interface Objects -> Message Interface section on the left frame

6. Click “Read Interfaces” to read the interface properties and populate the lower

window

7. Select the “MATMAS2FileMat_MM” message mapping as the Mapping Program

again via drop down or drag and drop from the Mapping Objects -> Message

Mapping section on the left frame

8. Validate the final configuration against the below and “Save”

13

Step: Activate Repository Objects

1. Select the “Change Lists” tab

2. Expand your change list

3. Expand your SWC

4.

5.

Right click on “Standard Change List” and “Activate”

On the popup window note all the objects that are being activated and

“Activate”
