IDoc to File (Asynchronous) Part 2

Directory

1. Return to the Integration Builder homepage and select “Integration Directory” and

logon

Step: Define the Scenario

Scenario

Scenarios, as discussed previously, are optional. We create it here solely

for the purpose of providing a ‘container’ for objects created in all the

subsequent exercises. Also, the Scenario can also be associated when

each object is created or after the fact – we simply do it here because of

convenience

1. Select the “Scenarios” tab

2. Right click and “New”

3. Enter “ScenarioXX” replacing “XX” with your group number as the name and

“Create”

The “Business Scenario from the Integration Repository” field blank.

This is used to import a Scenario created into the Repository into the

Directory to ‘prime’ it

On the following screen you can start to create the Directory objects

under the “Scenario Objects” and “Configuration” tab. However, we’ll

create them under a tree-like structure that more closely emulates the

way they are viewed under the “Objects” tab

4. “Save” and the Scenario is created on the left hand frame

5. Expand the Scenario tree to view the objects that can be created in the Directory

Step: Define / create the Collaboration Profile Objects

Sender: Service without Party

The sender service was pre-created and can be viewed under the Objects tab ->

Service Without Party -> Business System -> “GL1”

Sender: Communication Channel

Given this is an IDoc exchange coming from another SAP system, a sender

communication channel does not need to be defined

clip_image002

Receiver: Service without Party

1. Navigate to your scenario and expand the “Service Without Party” element

2. Right Click on “Business System ” and “Assign Business System”

3. “Continue” to skip the Business System Wizard intro

4. Leave the Party blank (not required for this exchange) and “Continue”

5. Select your business system and uncheck the “Create Communication Channels

Automatically” checkbox. Leaving it check simply created unnecessary

communication channel templates for this service

If you do not see your business system it is because the SLD cache in the

Repository is not up to date. To refresh, choose Environment -> “Clear SLD Cache

Data”

6. “Finish” to create the service

7. “Close” the window

Receiver: Communication Channel

1. Expand the Business System element as well as your “FileMat_BS_XX” element

to view the “Communication Channel” element

2. Right Click on “Communication Channel ” and “New”

3. Enter “FileRcvr_CC” as the communication channel name and “Create”

4. Configure the communication channel as shown below and “Save”

16
clip_image002[2]clip_image008clip_image002[3]

To choose the “File” Adapter type you must use the blue question mark icon

or F4 help to select it

Step: Define / create the Collaboration Agreement Objects

Sender Agreement

A sender agreement is not required in this scenario as it is an IDoc exchange

from another SAP system and uses the standard ALE configurations for sending

(Partner Profile, Port, and RFC Destination)

Receiver Agreement

1. Navigate to your scenario

2. Right Click on “Receiver Agreement” and “New”

3. Leave the sender Party blank (not required for this exchange)

4. Enter the sending “GL1” service

5. Leave the receiver Party blank (not required for this exchange)

6. Enter your receiving service you created above

7. Enter your receiving message interface “FileMatIn_MI” and “Create”

8. Associate your receiver channel created above

9. Leave the Header Mapping section blank and “Save”

17
clip_image002[4]clip_image010clip_image002[5]

Step: Define / create the Logical Routing Objects

Interface Determination

1. Navigate to your scenario

2. Right Click on “Interface Determination” and “New”

3. Leave the sender Party blank (not required for this exchange)

4. Enter the sending “GL1” service

5. Enter your sending message interface “MATMAS.MATMAS04”

If you use the help, you will not see your imported version of the

interface above listed. This is because the default search in this context

is based on the sending service. This service in turn links to a business

system in the SLD, which in turn links to the associated SWC. It is

under the SWC, then, message interfaces are created in the Repository.

To see the interface, choose the “All” radio button and select your

interface (be sure it is from your SWC!)

6. Leave the receiver Party blank (not required for this exchange)

7. Enter your receiving service you created above and “Create”

8. Configure your “Inbound Interface” and “Interface Mapping” as seen below and

“Save”

18
clip_image002[6]clip_image012clip_image002[7]

Receiver Determination (with Condition)

In most instances, a new Receiver Determination would be created. However,

given that in this scenario the combination of the sender service (i.e. “GL1”)

and interface (i.e. “MATMAS.MATMAS04”) will be used by every student,

each student will instead be adding their receiver service to an existing Receiver

Determination

1. Navigate to the Objects tab

2. Expand the “Receiver Determination” element

3. Locate the receiver determination named “| GL1 | MATMAS.MATMAS04” and

right click

4. “Add to Scenario” and select your scenario

5. “Add” and “Close”

6. Navigate back to the Scenarios tab and to your scenario specifically

7. Expand the receiver determination to view the newly added object

8. Double click to populate the receiver determination into the right frame and enter

“Edit Mode”

Given each member of the class will need to modify this object be aware

of ‘locks’ o the object. Conversely, bear this in mind to complete the

following steps through activation quickly to release the object for

others.

9. Click on the “Add New Condition” button in the “Configured Receivers” window

as shown below to add a new receiver line (with unique condition)

The green “+” will also add a line for a new receiver, but assumes the

same condition applies for this receiver as for the new receiver to be

added - which is not what we want in this scenario

10. Enter your business system under the Configured Receivers -> Service

19
clip_image002[8]clip_image014clip_image016clip_image002[9]

If you receive a popup message “Message Interface no longer exists in

the Integration Repository”, “Close” and ignore it. See the related

explanation under the Interface Determination section above

11. In the Condition column on that same line, left click on the question mark help

icon

12. In the following Condition Editor pop-up window, left click on the help icon in

the “Left Operand” field

13. In the following Expression Editor pop-up window, select the “Context Object”

radio button

14. Use the drop drown to locate and select the “SNDPFC” field and “OK”

15. Back in the Expression Editor, leave the “=” Operand as is

16. Enter your group number in the “Right Operand” and “OK”

17. “Save” and validate your “Configured Receivers” as seen below:

When we set up the condition we used Context Object Templates (pre-defined

Context Objects). Alternatively you can define custom ones and assign them in

the Repository. In this example our condition will force a check of the Sender

Partner Function field on the incoming IDoc control record to be equal to a

specific group number for processing – in this manner only your IDocs will be

processed by your interface

Receiver Determination – Configuration Validation

1. In the lower “Configuration Overview for Receiver Determination” expand your

receiver service

2. Review that the receiving message interface, interface mapping, and receiver

agreement (communication channel) are correct. If all items are black, then the

necessary interface objects have been created

Step: Activate Directory Objects

1. Select the “Change Lists” tab and expand your change list

2. Right click on “Standard Change List” and “Activate”

3. On the popup window note all the objects that are being activated and “Activate”

20
clip_image002[10]clip_image018clip_image020clip_image002[11]

Execution

Step: Send the IDoc (Sender System)

Test Tool for IDoc Processing

1. Logon to the GL1 Training System SAP GUI

2. Call transaction WE19 to open the IDoc test tool

3. Select “Existing IDoc”, enter IDoc number “248243” and press F8 to execute

4. Expand the E1MARAM segment and note the segments and fields populated and

how they relate to the message map you created above

5. Left click on the data of the EDIDC segment of the IDoc

6. On the popup window, update the Sender Partner Function from “XX” to your

group number and “Enter”

Remember how this relates to the condition defined in the above

receiver determination

7. Press the “Standard Outbound Processing” button

8. On the following popup window “Enter” to send the IDoc

9. Take note of the IDoc number generated as it will be used in subsequent exercises

as well as for tracking in this lab

You can track the IDoc status from the GL1 sending system via

transaction WE02

Step: Monitor Message Status (XI System)

Message Monitoring in XI

1. Logon to the XI3 Training System SAP GUI as described in the very first section

2. Call transaction sxi_monitor to open the XI message monitoring tool

21
clip_image002[12]clip_image022clip_image002[13]

3. Press F8 to execute with a wide open selection, or enter various sender / receiver

information to narrow down the search results first

4. Displayed is a summary level of messages processed via XI. Some options for

viewing:

a. Choose the “Select Layout” button and Select Layout -> Application

Oriented Views for Messaging. This displays the message columns with

easy visibility of sender / receiver service, interface and namespace for

easier message locating

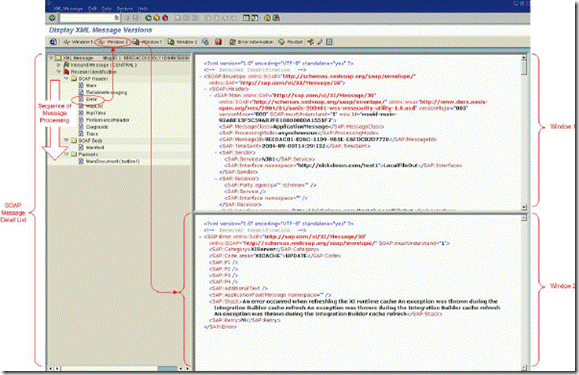

b. Select your message and choose Edit -> Expand Message to view all

persisted versions of your message as it passes through XI

c. Double click on your message to view the message details. This is

explained in greater detail in the Runtime Chapter but displayed

graphically here in brevity

22
clip_image002[14]clip_image024clip_image026clip_image002[15]

Step: Receive the File (Receiver System)

View the Created File

1. Log back on to the GL1 Training System

2. Navigate to transaction AL11

3. Double click on DIR_TRSUB to show all the files in the /usr/sap/trans/tmp

directory (this is the directory referenced in the alias Target Directory

“/transtmp554” in the receiver communication channel above)

4. Double click on your file to view it. Validate the timestamp and contents reflect

the message you sent. The format should be similar to the following:

23
clip_image002[16]clip_image028clip_image002[17]

Behind the Scenes

There are some configurations that were required but not explicitly documented above to

allow the lab to function. For your understanding, you can review them using the

directions below:

SAP (Sender) System Configurations

1. To be able to send an IDoc outbound of SAP requires a partner profile, port and

RFC destination. To view:

a. Log on to GL1

b. Go to transaction WE20 -> Partner Type LS -> GL1CLNT100

c. Double click on MATMAS in the outbound parameters

d. On the subsequent window you can drill down to the related port

e. On the subsequent window you can drill down to the related RFC

destination

XI System Configurations

1. When an IDoc is received into XI, XI needs to have access to the IDoc metadata.

This is configured in an XI port which links to a RFC destination which in turn

provides access to a SAP system with that information. For a greater

understanding of the requirements / relationship, reference the Adapters chapter,

IDoc Adapter (inbound). To view:

a. Log on to XI3

b. Go to transaction IDX1

c. Select port “SAPGL1”

d. Note the RFC destination listed for the port which you can drill down to

by double clicking

SAP Developer Network SAP Weblogs: SAP Process Integration (PI)
